MODIMOO

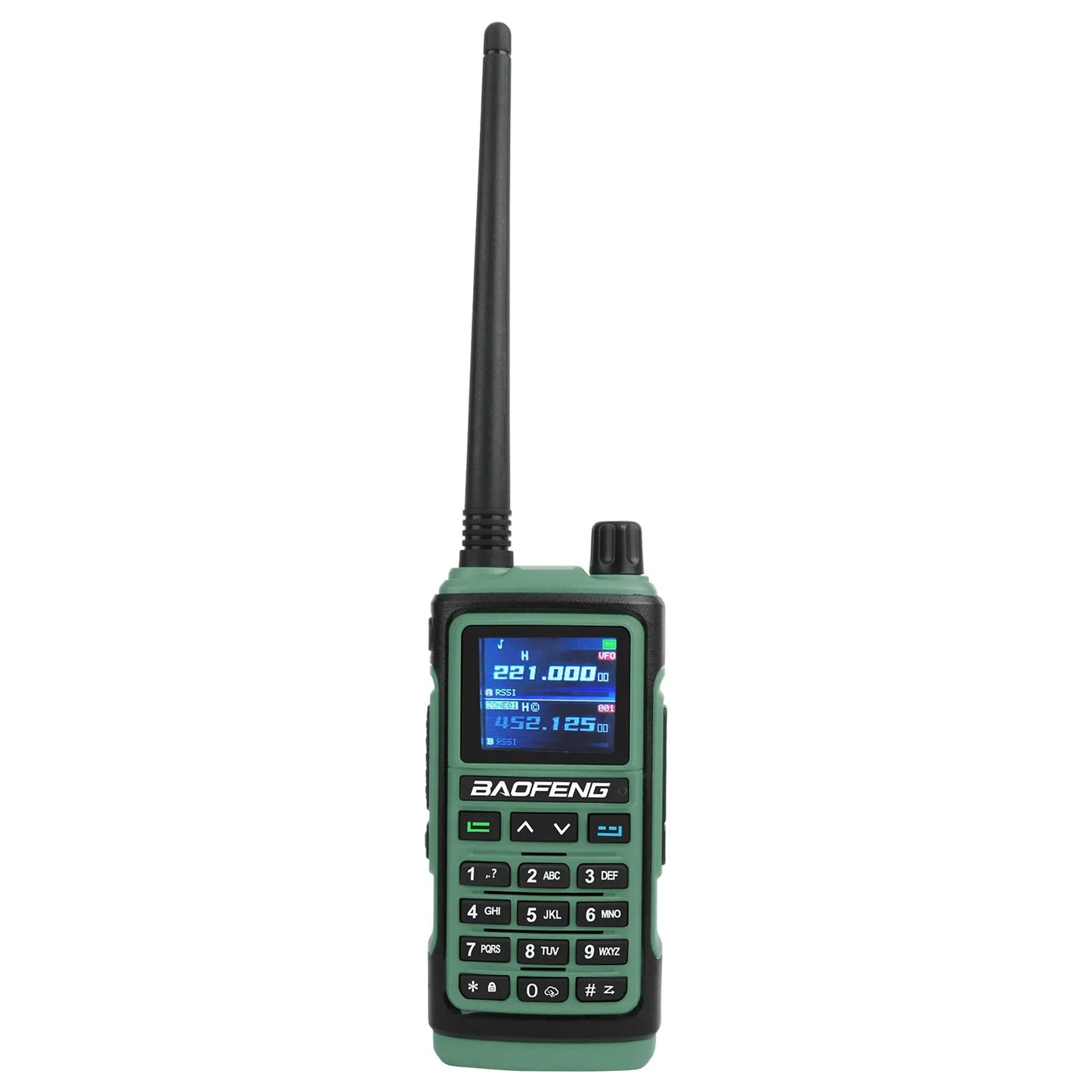

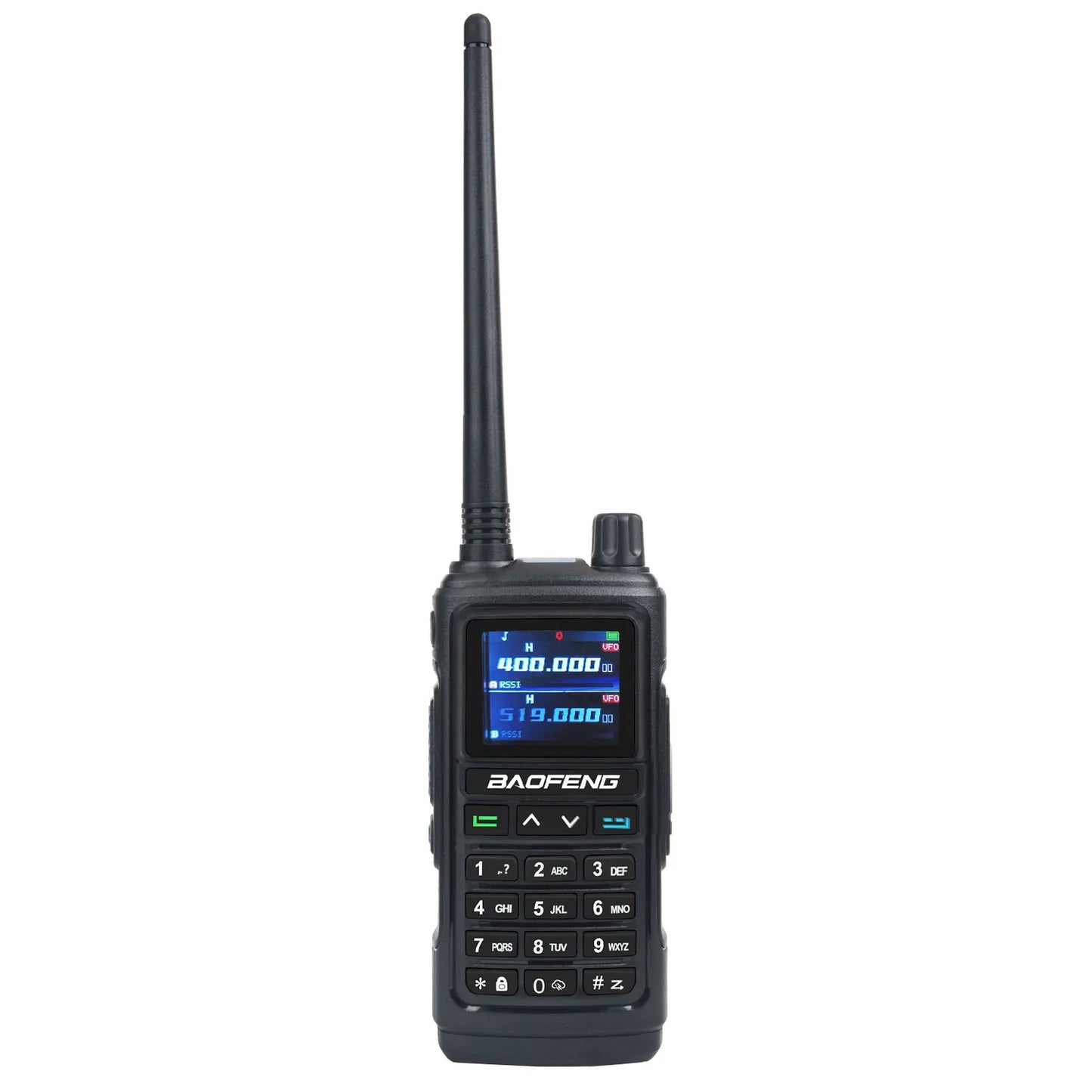

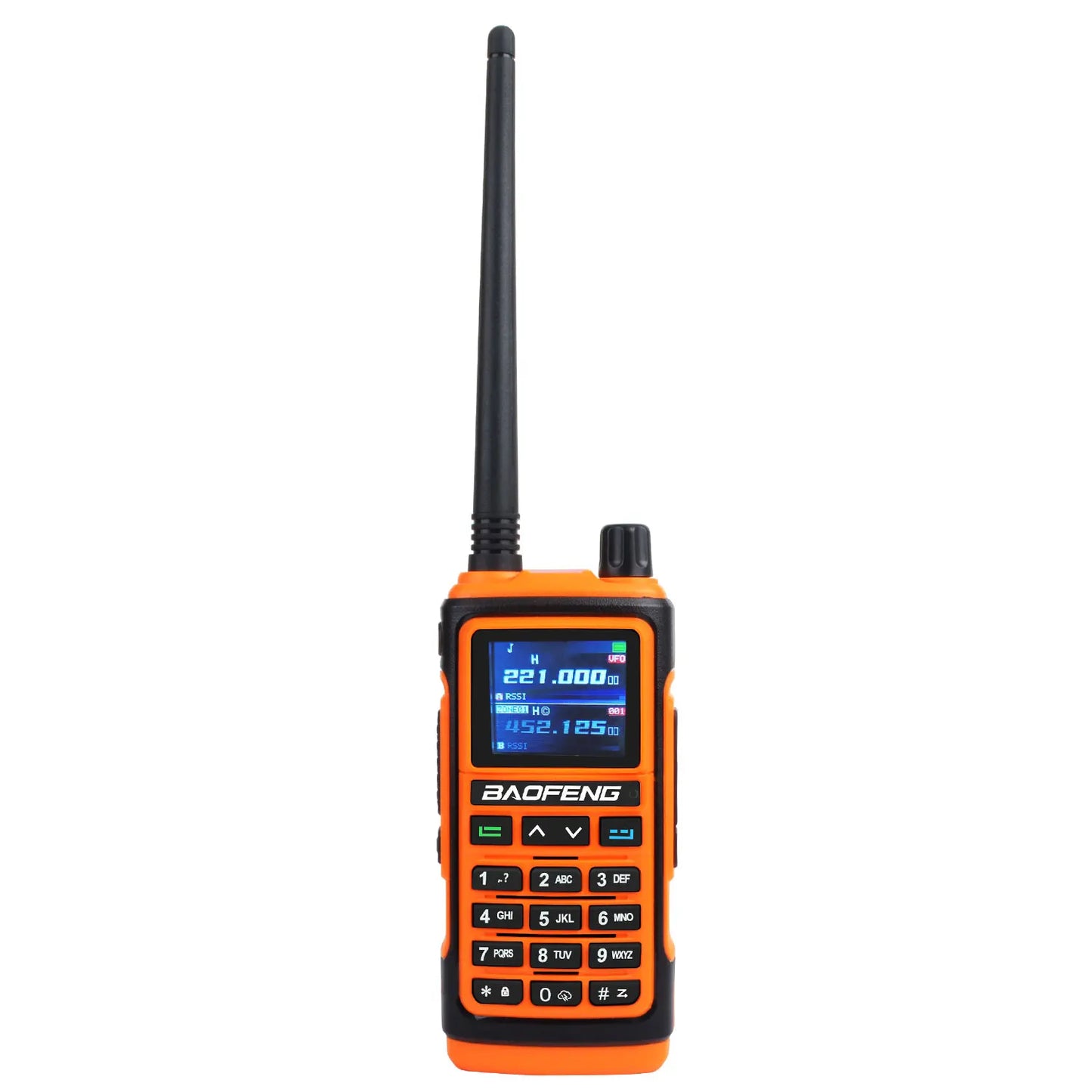

TTT Walkie Talkie

TTT Walkie Talkie

Regular price $74.99 USD
Sale price $74.99 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

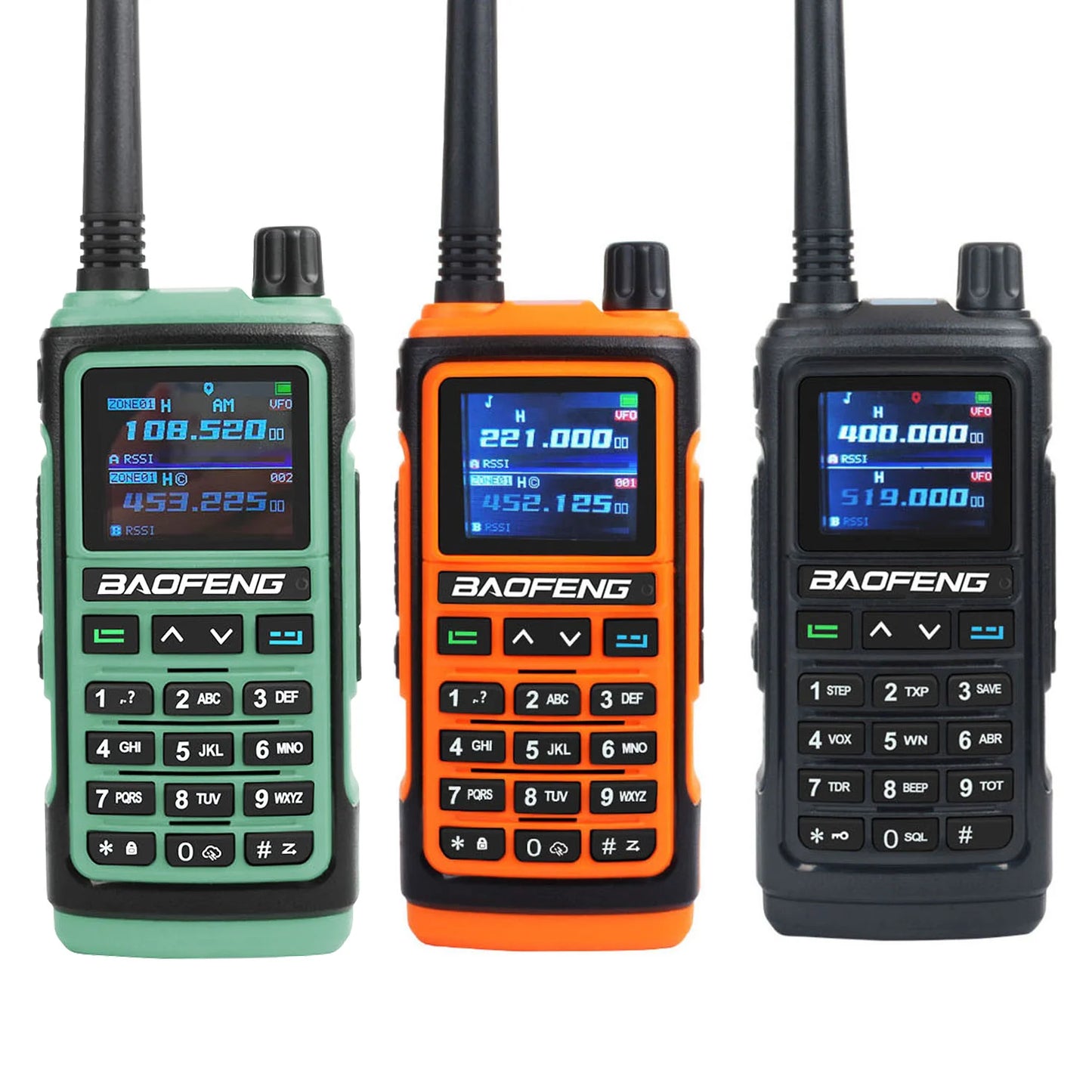

Color
Plug standard

SPECIFICATIONS

Battery Capacity(mAh): 1800

Waterproof / Water-Resistant: IP55

Maximum Range: 3km-5km

Walkie Talkie Type: Portable

Output Power(w): 3w-5w

Material: plastic

Storage Channel: 1000

Frequency Range: 6 bands Receive, Tri-bands Transmit

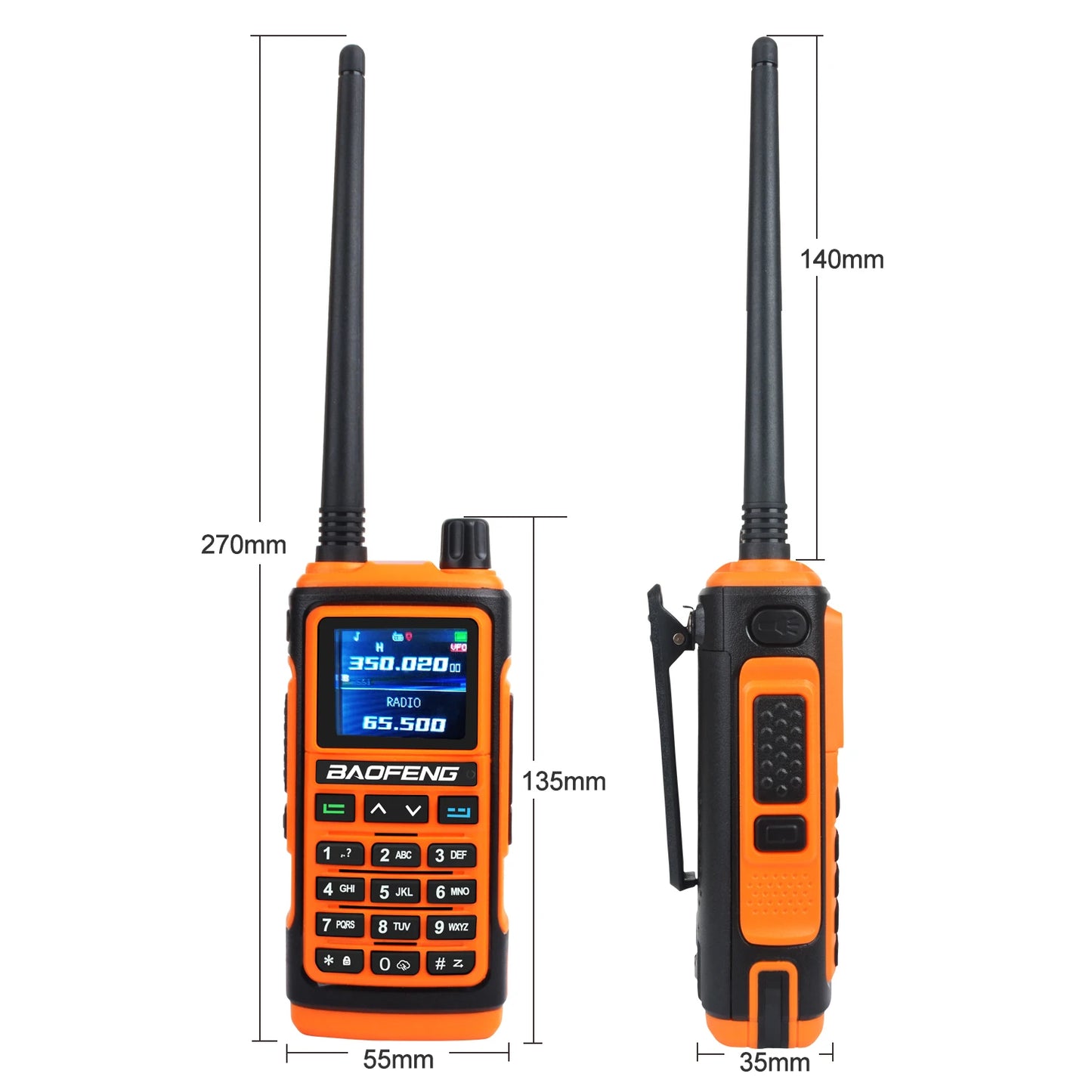

Dimensions: 135mm*61mm*39mm(Antenna Not included)



Features:

  • 11.77”color Screen
  • Frequency Range:
  • FM: 65-108MHz (RX)
  • AM: 108-130MHz (RX)
  • VHF1: 350-355MHz (RX)
  • VHF2:136-174MHz (TX & RX)
  • VHF3: 200-260MHz (TX & RX)
  • UHF: 400-520MHz (Tx & Rx)
  • 1000 Memory Channels,5W Output Power
  • NoAA weather broadcast Channels
  • GPS/Beidou position and location Sharing in the Groups
  • Wireless Frequency and its Sub-tone Copy (two radio shall be keep 30cm at least far away for a accurate copy)
  • Dual Watch, Dual Standby
  • Three Scan Modes: Time/Carrier/Search
  • VOX (Voice Operated Transmission)
  • Alarm Mode: Site/Code/Tone
  • Side Key 2 Customized
  • Frequency Hopping
  • 1000/1450/1750/2100Hz Tone
  • CTCSS/DCS Scan
  • Roger Beep
  • DTMF

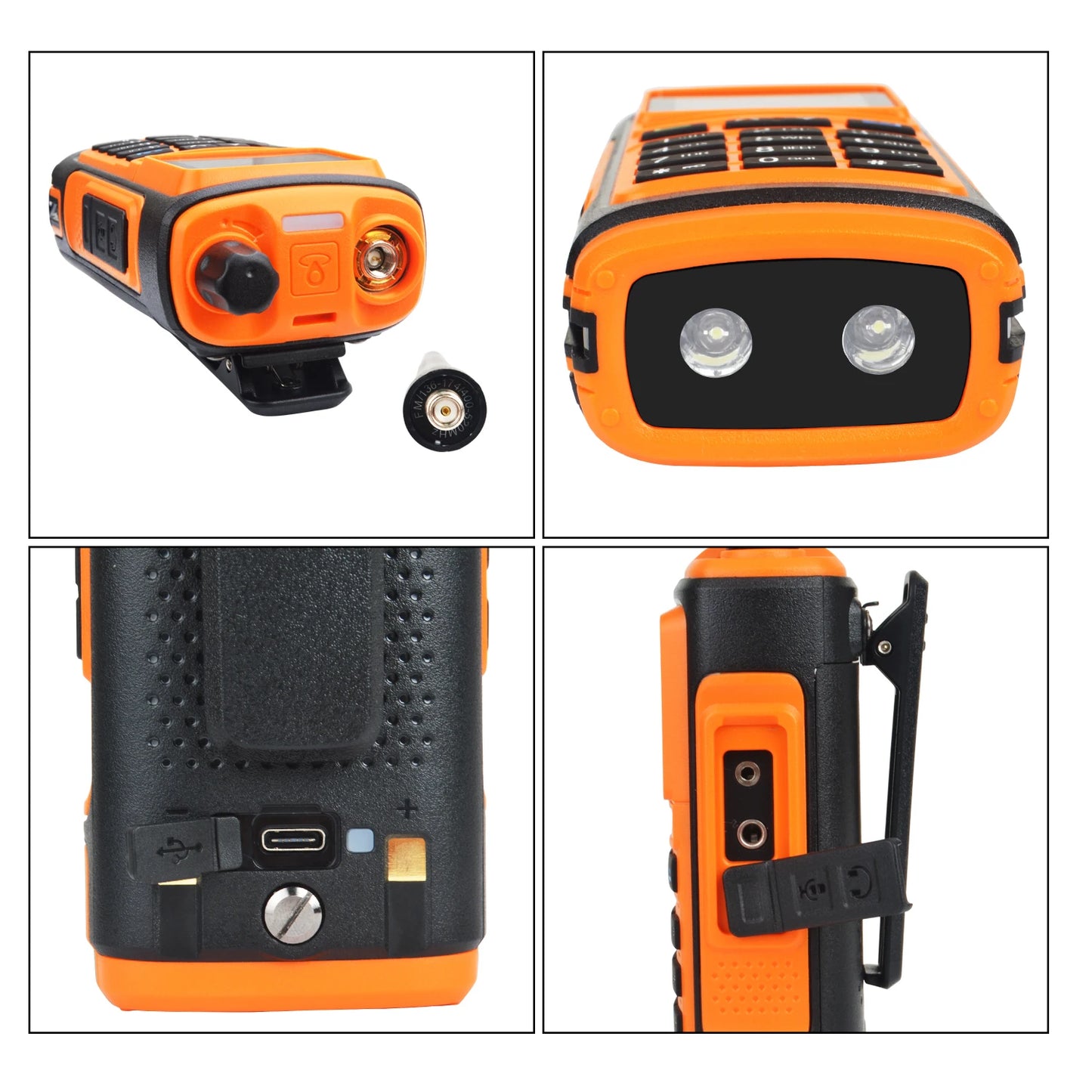

  • Two Lamp Beads Torch, Stronger Flashlight
  • 1800mAh Rechargeable Battery
  • FM Radio Broadcast (65-108MHz )
  • IP54 Waterproof

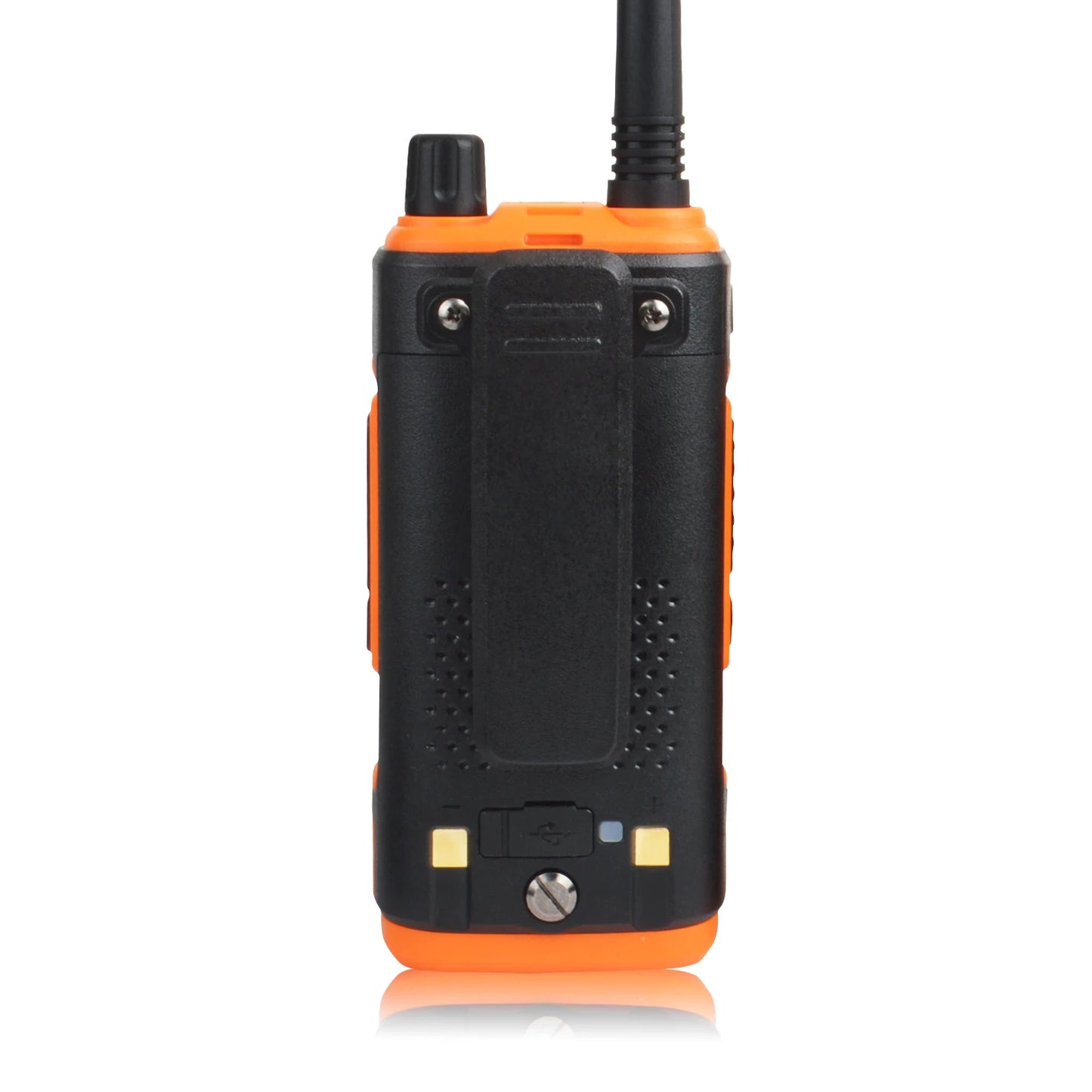

  • Type C Charging Battery



Technical Specifications:

General

Channel Capacity

1000

Channel Spacing

25.0KHz/12.5KHz

Input Voltage

7.4VDC

Current Drain: Standby

Receive

Transmit

45mA

380mA

≤1.6A(High power), ≤1.2A (Low power)

Operating Temperature

-10°cto 60°c

Antenna Impedance

50 ohm

Radio Dimensions

135mm*61mm*39mm(Antenna Not included)

Radio weight

260g (with Li-ON battery)

Transmitter

Frequency Range (TX)

136-174MHz & 200-260MHz &400-520MHz

RF Output Power

5Watt

Modulation

16K ΦF3E/11K ΦF3E

Spurious Emission

-16dBm< 1GHz, -16dBm> 1GHz

Frequency Stability

±2.5ppm

Audio Distortion

≤5%

FM Hum & Noise

40dB

Receiver

Frequency Range

VHF2: 136-174MHz & UHF 400-520MHz (Scan receiver)

FM: 65-108MHz (RX)

AM: 108-130MHz (RX)

VHF1: 350-355MHz (RX)

VHF3: 200-260MHz

Sensitivity:12dB SINAD

-120dBM

Adjacent Channel Selectivity

-60dBm

Intermodulation and rejection

-70dBm

Rated Audio Power Output

0.75Wats 16ohm

Rated Audio Distortion

≤5%

Note: All Specifications may be modified without prior notice or liability.  Thank you!

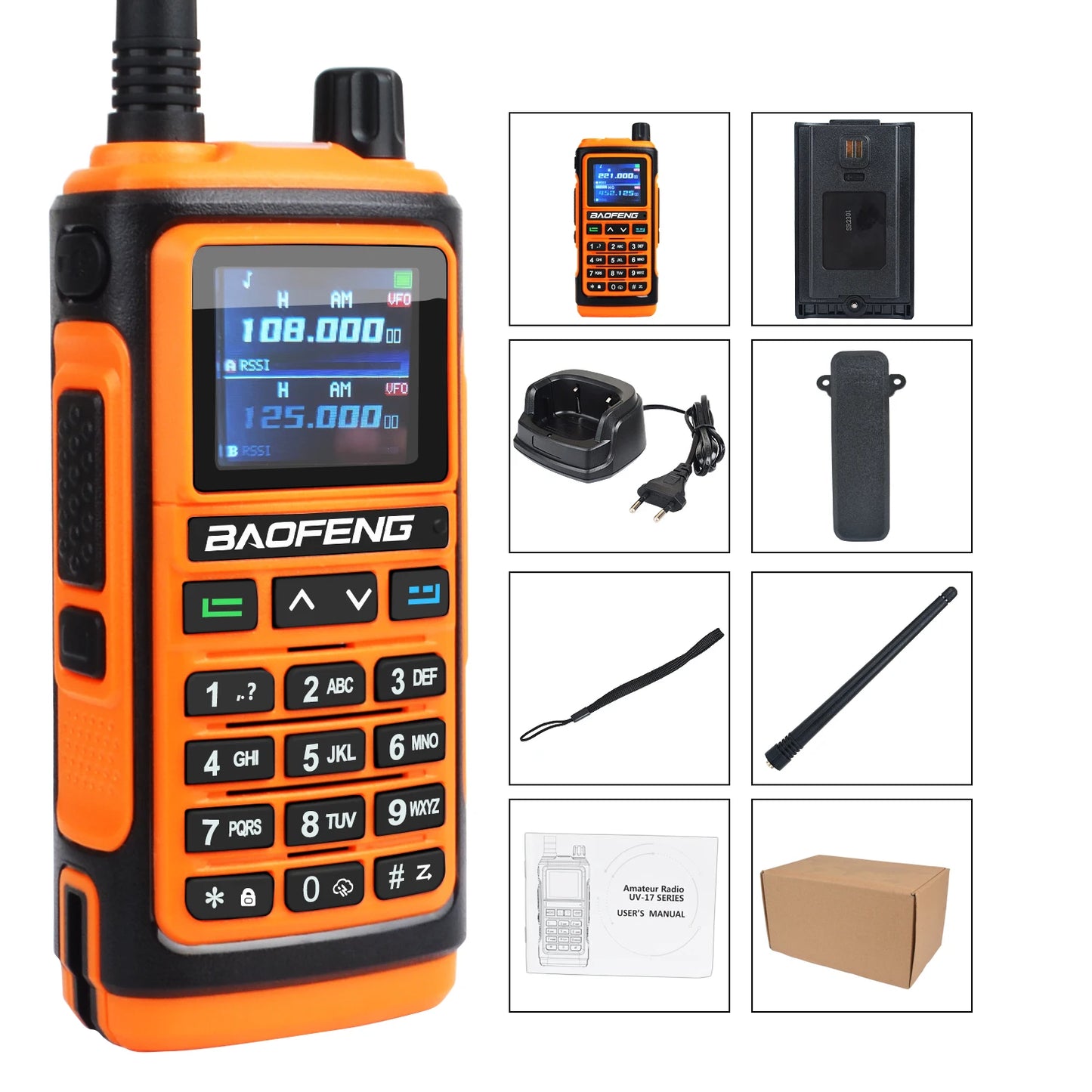

Package Contains:

1× UV-17Pro Radio Body

1× 7.4V 1800mah Li-ion Battery Pack

1× SMA-Female Dual Band Antenna

1× Desktop Charger with Correct Adapter for your Country

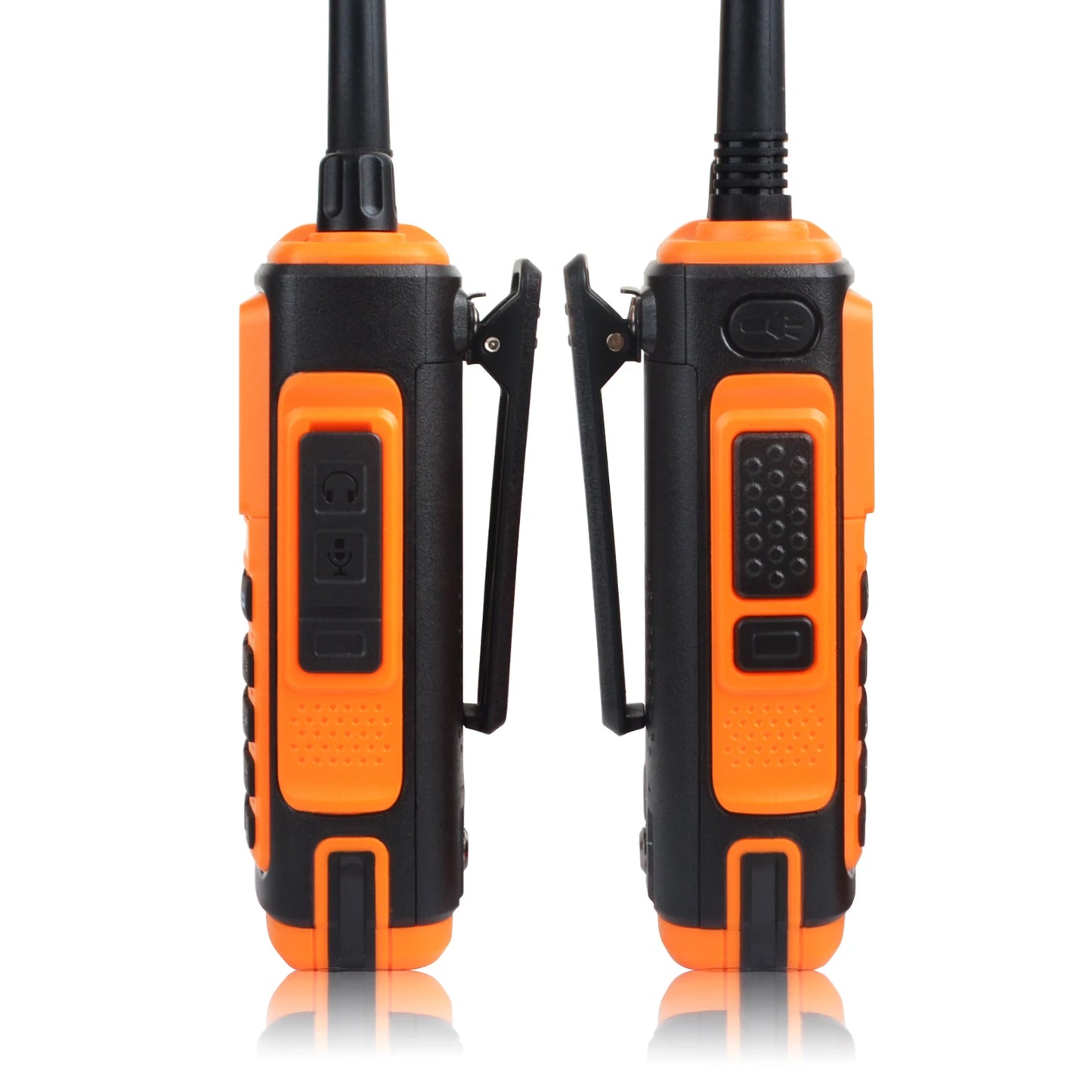

1× Belt Clip

1× Handstrap

1× ENG Manual
