Home Vision Bell

SPECIFICATIONS

Hign-concerned Chemical: None

Connection Type: WireLess

Power: Electric Supply

Display: Color

Feature: Photograph

Feature: Video

Item Type: VIDEO DOORBELL

Itercom: Yes

Alarm: Yes

Certification: CE

Certification: FCC

Certification: RoHS

Certification: weee

Smart home platform: Alexa

Smart home platform: Google Assistant

Video Resolution: 2560X1920 (5mp) @20FPS

Image Sensor: 1/2.7"

Lens: f=2.26mm F=2.0, with IR cut

Field of View: Diagonal: 180°

Field of View: Horizontal: 134°

Field of View: Vertical: 97°

Pre-Motion Recording: Support

Audio: Two-way audio

Quick Replies: Support

Storage: Micro SD card slot (Max. 256GB), works with Reolink NVR

Ethernet: One 10M/100Mbps RJ45

WiFi version: 2.4/5GHz WiFi

PoE version: IEEE 802.3af

Doorbell button: Yes

IR-light: 2pcs, 850nm

function 1: noise reduction, echo suppression

function 2: Person Detection

function 3: Pre-Motion Recording

Power of PoE version: PoE:IEEE 802.3af, 48V Active;Hardwired:12-24VAC 50/60Hz, DC 24V

Power of WiFi version: Hardwired:12-24VAC 50/60Hz, DC 24V

Audio Interfaces: Built-in 2 microphones & a speaker

Input of Chime: AC 100-240 V; 50-60 Hz

Button of Chime: For setting up/selecting ringtones/adjusting volume

Number of Selectable Ringtones: 10 ringtones

Working Environment: Temperature: -20℃~50℃; Humidity: <85%

Size of Doorbell: 133mm(H) x 48mm(W) x 23mm(T)

Material of Chime: ABS+PC

Weight: 96g



Attention

The WiFi doorbell plug as this picture show, the PoE doorbell don't come with Power Adapter, pls notice!

Reolink-Chime-Specifications
Model	Reolink Chime	US Version	EU Version	UK Version	AU Version
Physical	Material	ABS+PC
	Dimensions	86.5 x 29 x 45.2 mm	86.5 x 29 x 66 mm	86.5 x 29 x 52 mm	86.5 x 30.6 x 47.6 mm
General	Input	AC 100-240 V; 50-60 Hz
	Button	For setting up/selecting ringtones/adjusting volumeTransmission Mode RF 433 MHz
	Volume	5 levels
	Number of Selectable Ringtones	10 ringtones
	Working Environment	Temperature: -20℃~50℃; Humidity: <85%
Warranty	Limited Warranty	2-year limited warranty



Comparison of Video Doorbell
Model		WiFi Video Doorbell	PoE Video Doorbell
Video & Audio	Image Sensor	1/2.7" CMOSSensor
	Video Resolution	Default: 2560X1920 (5 megapixels) @20FPS
	Lens	f=2.26mm F=2.0, with IR cut
	Video Format	H.264
	Field of View	Horizontal: 134°
		Vertical: 97°
		Diagnal: 180°
	Pre-Motion Recording	Support
	Audio	Two-way audio, Noise reduction, Echo Suppression
	Quick Replies	Support
Power	Hardwired	12-24VAC 50/60Hz, DC 24V
	PoE	x	IEEE 802.3af, 48V Active;
Interfaces	Power	Power port
	System	Reset button
	Ethernet	One 10M/100MbpsRJ45
	Storage	Micro SD card slot (Max. 256GB), Reolink NVR
	Audio	Built-in 2 Microphones & Speaker
WiFi	Wireless Standard	IEEE 802.11a/b/g/n	x
	Operating Frequency	2.4GHz/5GHz	x
	Wireless Security	WPA-PSK/WPA2-PSK	x
Software	Frame Rate	Mainstream: 2fps - 20fps (default: 20fps)
		Substream: 4fps - 15fps (default: 10fps)
	Code Rate	Mainstream: 1024Kbps - 6144Kbps (default: 4096Kbps)
		Substream: 64Kbps - 512Kbps (default: 256Kbps)
	Browsers Supported	Edge, Chrome, Firefox, Safari
	OS Supported	PC: Windows, Mac OS; Smartphone: iOS, Android
	Smart Alarm	Motion detection/Person detection/Visitor detection
	Recording Modes	Motion recording (default)/scheduled recording
	Protocols & Standards	HTTPS, IPv4, UPNP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
	Work with	Google Assistant
	Rich Notification	Support	No
Working Environment	Temperature	Operating temperature: -10°C~+55°C(14°F~131°F)
	Humidity	Operating humidity: 10% ~ 90%
	Waterproof	Support
Size & Weight	Dimension	133mm(H)x48mm(W)x23mm(T)
	Weight	96g
Warranty	Limited Warranty	2-year limited warranty

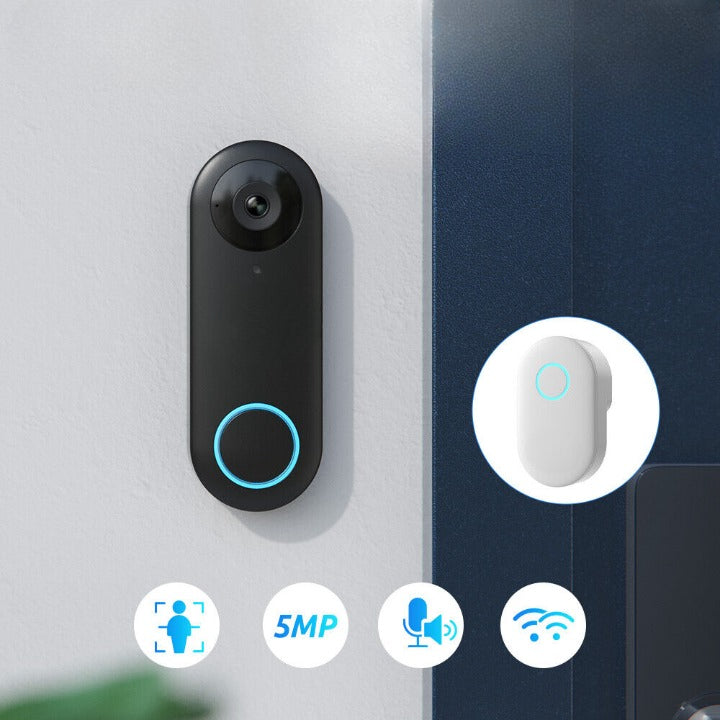

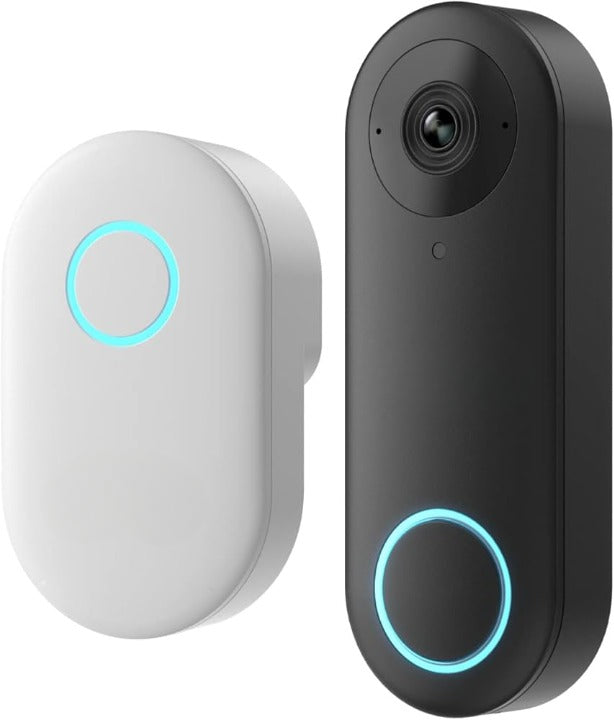

Reolink 2K+ Video Doorbell Smart Outdoor Home Video Intercom with Chime

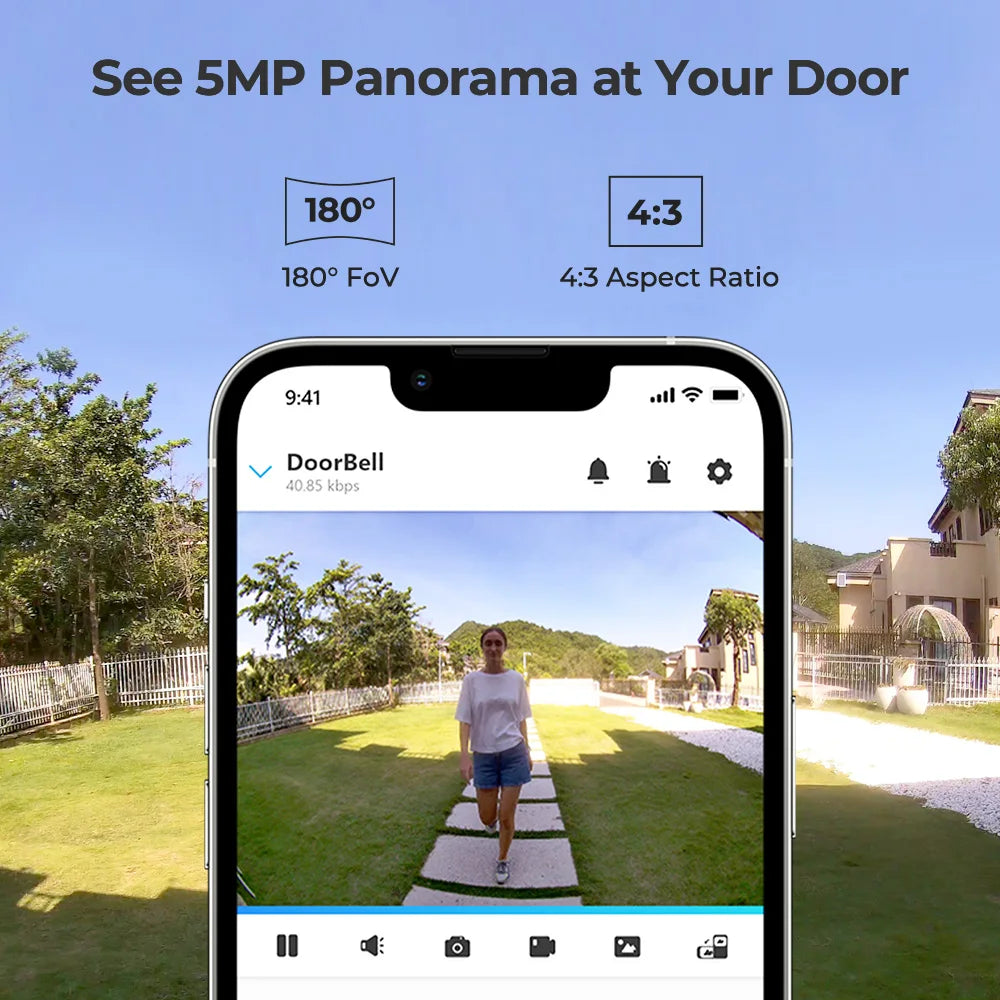

2K+ Incredible Clarity & 180° wide view

2K+ (5MP) resolution 180 °FOV means much more information and a wider range. Individuals will be easier to see with more detail.



Person Detection & Custom Motion Zone

The doorbell can alert you only when a person is detected, ignoring trivial non-human passers-by. You can also set a motion zone to black out areas prone to unnecessary alarms.

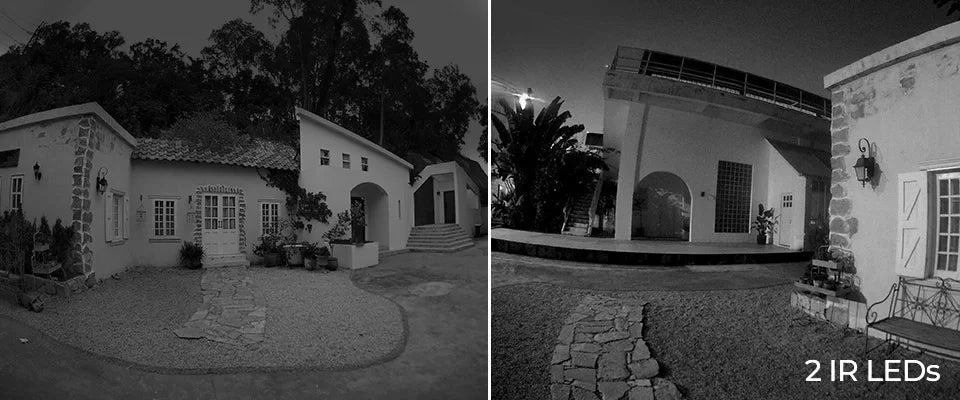

Keep Watch Through Nights

Its infrared LED enables high-quality night recording videos. Knowing who's there even in the dark.



2-way Audio, Quickly, Instantly, Communicatively

Reolink Video Doorbell has built-in mics and a speaker. Take your time greeting the visitor before hurrying to the door, deter the unwanted visitors with no delay, or live talk with the visiting friends when you're not at home.

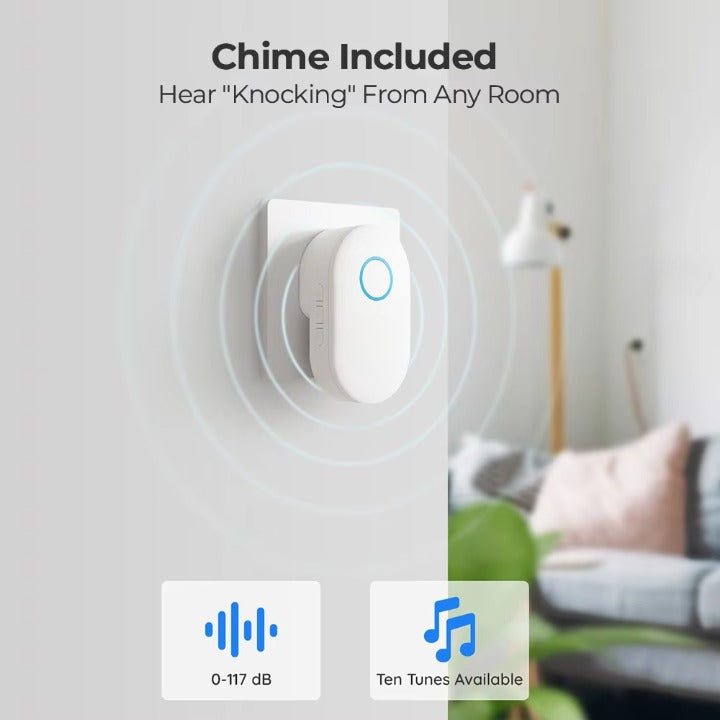

Video Doorbell with chime

Just plug it into any electrical socket in any room and be confidently alerted when visitors knock.*Please note that Chime is divided into four plug specifications: US/UK/EU/AU. Please choose the option that meets your needs according to the warehouse configuration instructions at the top of the page.



Flexible Storage Options

You can save your recordings locally to a Micro SD card (up to 256GB) or to a Reolink NVR.

*The regular packaging list does not include SD card. If necessary, please choose the option with SD card to purchase



Voice Control, Free your hands

Compatible with Google Assistant, Alexa Show for voice control and real-time monitoring.



WIFI - Video doorbell, Easy to use



PoE - Reliable Connection & Easy Installation



Rely on It, Rain or Shine

With its waterproof design, the video doorbell is suitable for harsh weather conditions and performs well regardless of rain or shine.
